Caliber Armor Ballistic Shields

---

This shield includes a fixed one-position handle for better balance, less carry fatigue and easy to use for right and left-handed users. Padded armrest and quick release arm strap come standard. Custom grip padding for handle and free POLICE or SHERIFF imprint.

Upgraded hardware ensures the ballistic performance of the shield is consistent throughout the surface. This shield and hardware passed and exceeded not only the RF2 threats, but also DEA and Special Threats like the M855 A1 and LPS projectiles. We think you still want .308 coverage so we test our shields against the testing to give you a true Level III++ / RF2 protection level. An extra pound gives you an extensive amount of extra protection.

Caliber Armor Shield – Ultra Series design made with ultra-hard alloy. Multi-shot rated. Finished with a polyurea protective coating.  Made in the U.S.A

Sizes:
8x17" Patrol Shield 7.8 lbs.

11X18" 12.75 lbs.

15X25" 20.5 lbs.

16x30"  26 lbs.

SPECIFICATIONS:

8x17" Patrol Shield, 4.8 lbs.

11X18" 10.25 lbs.

15X25" 11.28 lbs.

20X30" 13.75 lbs.

Caliber Armor Pro Series IIIA Pistol Shield includes a fixed one-position handle for better balance, less carry fatigue and easy to use for right and left-handed users. Padded armrest and quick release arm strap come standard. Custom grip padding for handle and free POLICE or SHERIFF imprint FREE with credentials.

GENERAL INFORMATION

Caliber Armor Pro Series IIIA design made with ultra-hard alloy. Multi-shot rated. Finished with a polyurea coating. Made in the U.S.A

CALIBER ARMOR BALLISTIC RESISTANCE TESTING PROTOCOL:

All testing was conducted on an indoor range at ambient conditions, in accordance with our instructions and the modified provisions of:

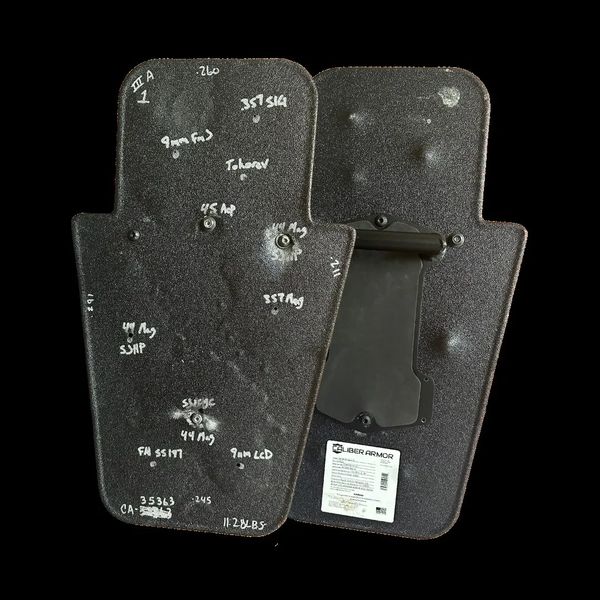

NIJ-STD-0101.06, NIJ-STD-0101.07 HG2 & Special Threats. Testing was conducted using caliber .44 mag SJHP, .357 SIG, .44 mag JHP, and 9mm FMJ. Special Threat .357 magnum 158gr JSP, .44 mag 240gr SWCG, 9mm LCD, .45 ACP 230gr, FN 5 7×28 40gr SS197 and 7.62×25 Tokarev 85gr FMJ. The sample was tested in accordance with NIJ-STD-0101.06 Level IIIA in an indoor range with the muzzle of the test barrel mounted 50 feet from the target and positioned to produce 0-degree obliquity impacts. Four Oehler model 57 infrared velocity light screens, in conjunction with two HP 5315A time-based frequency counters, were placed such that projectile velocity was measured 8.25 feet from the target. NIJ STANDARD 0101.06 IIIA & NIJ STANDARD 0101.07 HG2 Tested and verified to meet ballistic resistance as specified under NIJ Standard- 0101.06 IIIA & NIJ Standard – 0101.07 HG2 plus special threat tested.

QUALITY STANDARDS

Caliber Armor operates a documented quality management system to ensure the highest caliber armor available. Raw materials are tested prior to production and finished products are tested in credited ballistic laboratories.
